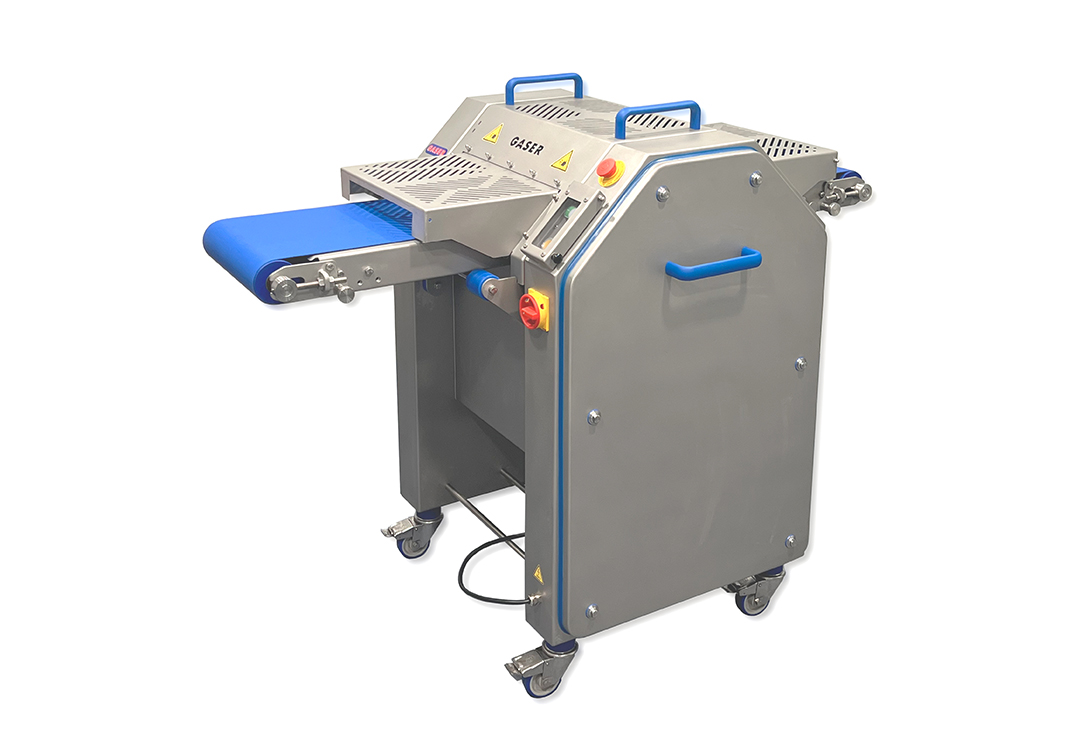

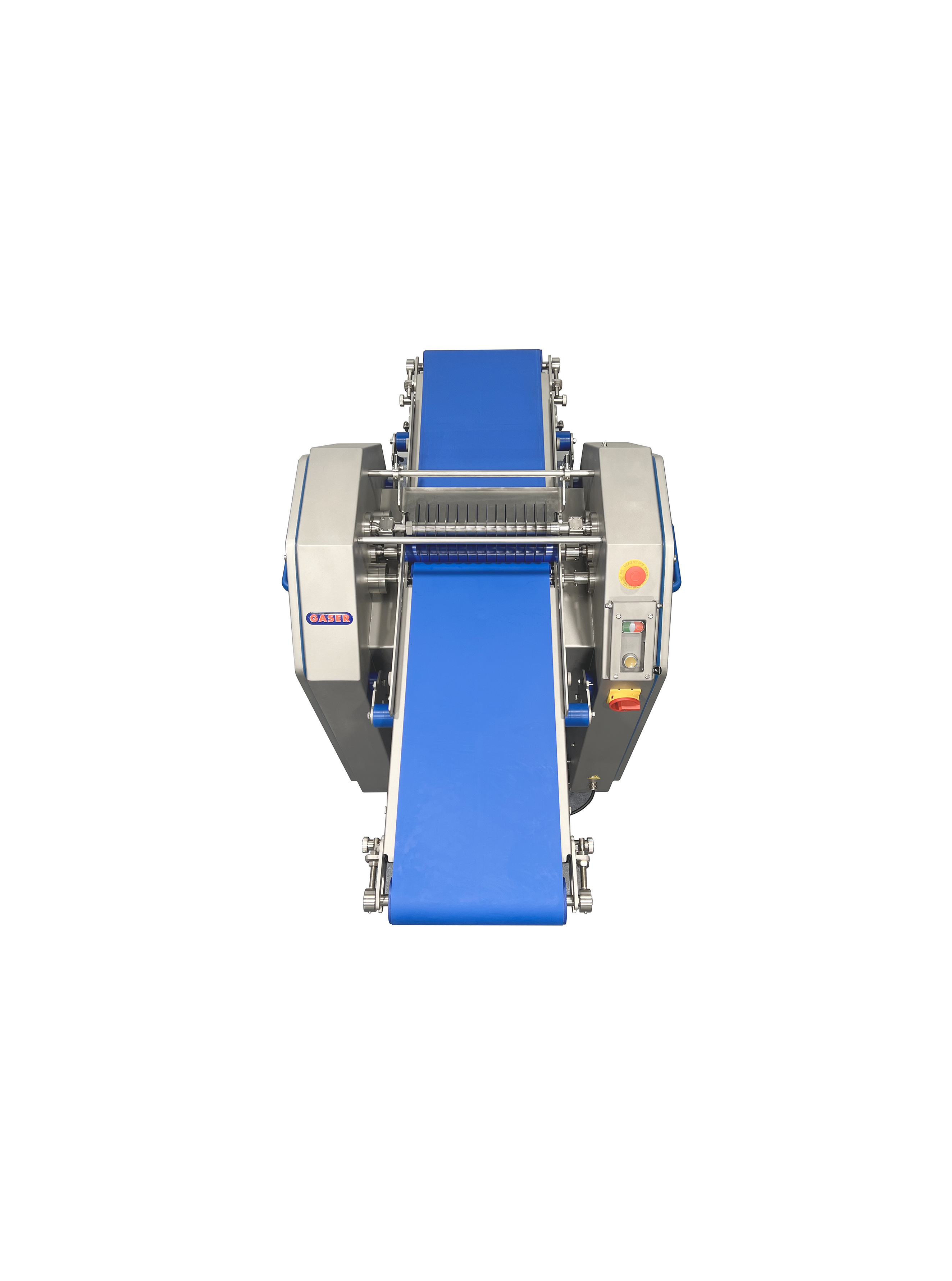

CRX-1230 Disc Cutter
TECHNICAL SPECIFICATIONS
- Production up to 600 Kg/h (depending on the operator).
- Useful width of the conveyor belt 300 mm.
- Maximum height of the product 40 mm.

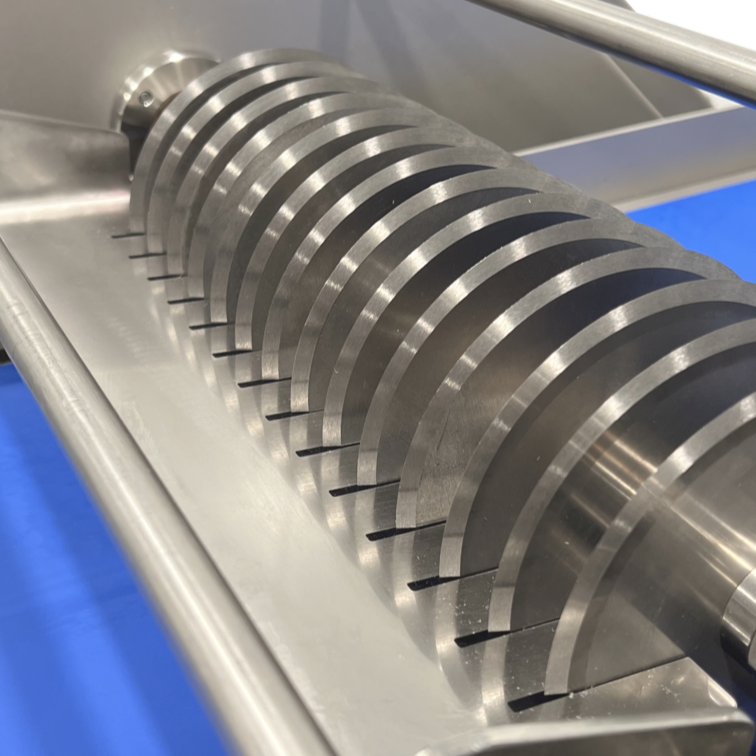

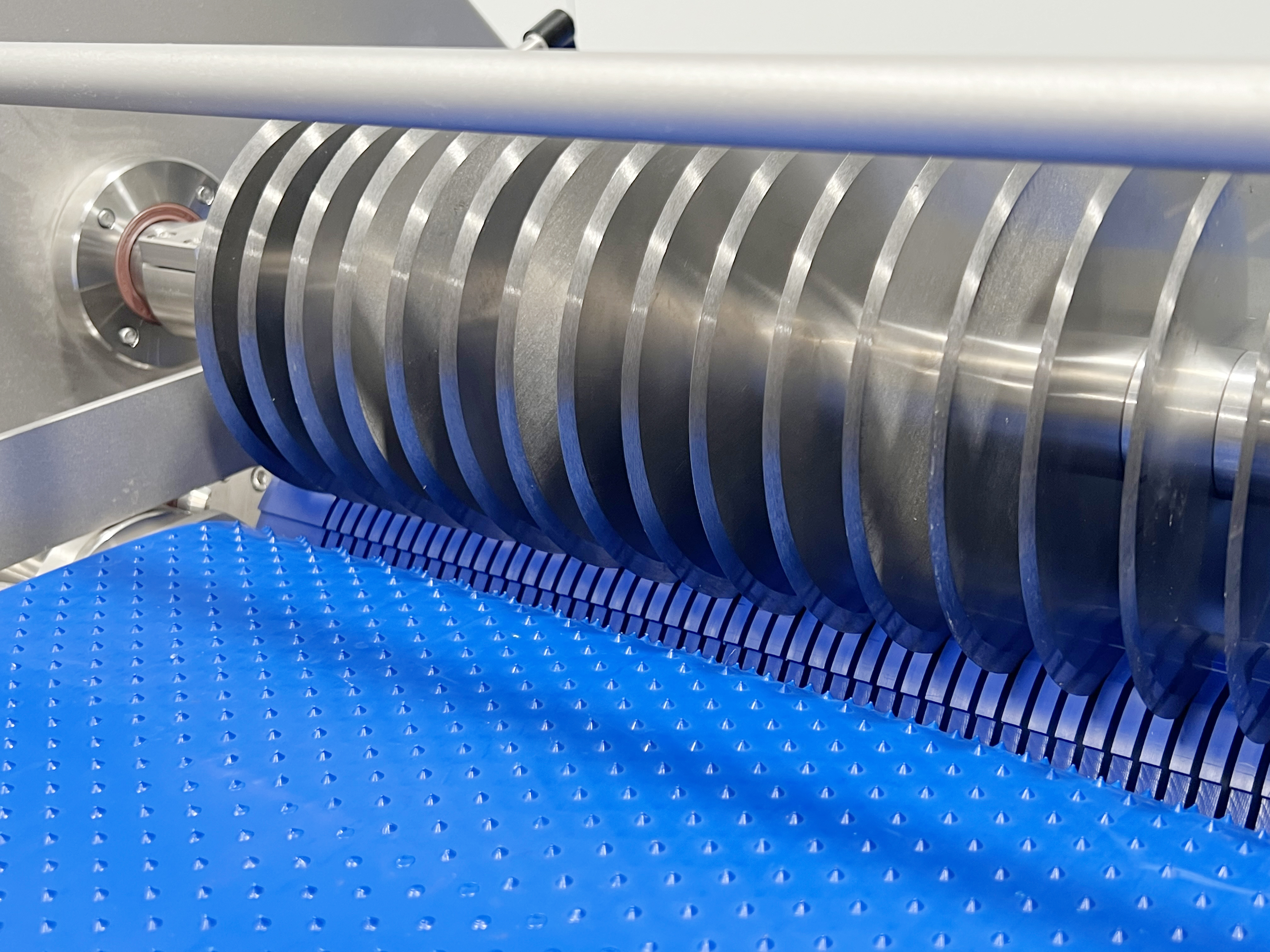

- Diameter cutting discs Ø120 mm.
- 1 single motor of 0.75 kW (1 HP).
- 2 Adhesive blue polyurethane textile conveyor belts suitable for the food industry.
- Recommended product temperature between 0 and 2 ºC.
- Cutting set available in different widths: 6mm, 12mm, 18mm, 24mm and 30mm. For special cutting games, consult.
- Active security systems.
- Machine on wheels with brake
- Single-phase voltage 230 V 50/60 Hz.
- Height of conveyor belts 955 mm.
- General measurements: 900 x 1,300 x 1,170 mm.
- Weight: 120 Kg.
- Constructed of AISI 304 stainless steel.
- Built under CE (European) standards with materials suitable for the food industry.
New strip cutter using discs. Suitable for products such as chicken, pork, beef, turkey, squid... to produce chicken fingers, strips for fajitas, squid rings or other products.
